The work principle of ATS high pressure homogenizer:
Each high-pressure homogenizer has a plurality of plunger reciprocating motion of the piston, the material in the under the valve set pressure adjustable in size, the width of the limiting slot (work area), transient voltage loss of material at high velocity (1000-1500 M / s) ejection, in one of the collision collision impact ring valve assembly, produce three effects: hole effect, impact effect, shear effect. After processing the three after the effect, particle size uniform refinement to below 100nm, the broken rate of more than 95%!
ATS large flow cell crushing machine application:
Escherichia coli, yeast, algae breaking, animal cells，
Biological engineering, biological chemistry, enzyme engineering, gene engineering drugs, vaccines, vaccines for veterinary use.，
AH-PILOT homogenizer for processing samples can be as high as 40L pilot customers and build, applicable to the pharmaceutical, biotechnology, food and other industries.
The maximum working pressure 1500bar, and equipped with a bit cooler and an external cooler, direct cooling homogeneous, especially equipped with frequency conversion controller, adjustable flow according to requirements of 15-40L.
ATS large flow cell crusher:
Ultra high pressure cell 1 special crusher;
2 the broken rate is high, a broken up to more than 95%;
3 according to GMP design, through the EU CE certification;
4 super high voltage design, pressure up to 1800bar/27000psi;
5 special feeding valve design, no exhaust, direct feeding;
6 in the cooling system, the direct absorption of broken heat production, ensure the intracellular activity.
ATS large flow cell crusher main user: (in no particular order)
Xinshengyuan, people raised sea creatures, biological, Huisheng biological

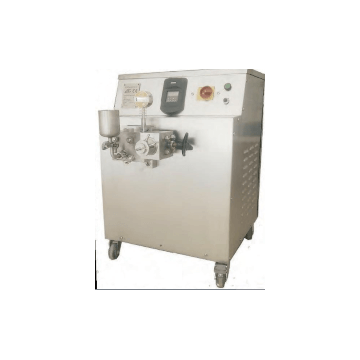

Pilot type AH-Pilot high pressure homogenizer
Product viscosity: < 2000 cPs
Maximum feed particle size: < 100 micron
Output: 40L/h
Batch processing volume: 200ml ~ 200L
Temperature control: Reign of cooling, the temperature is below 20 degrees
Homogeneous series: two
Maximum homogeneous pressure: the maximum 1500bar
The breakage rate of Escherichia coli: more than 95%, more than 90% of yeast
The main motor: 3.0kW, 6, Class. F, IP55
Voltage and frequency: 400V, 50Hz, 3.
Level: health level
Mechanical components: solid lubricating grease
The internal cooling: Fan
Unique design:
Test of high pressure homogenizer general type, can be used for the preparation, biological, food and other industries.
The large power motor of 3.0KW, to ensure the stable operation under high pressure
Frequency conversion control system, adjustable flow according to the requirements (15-40L)
Inlet valve design special, no exhaust, direct feeding,
Especially suitable for drug development of customer, this machine can zero loss really do, for you to save cost!
a part of Most famous Customer List：
.China Pharmaceutical University
2.Shenyang Pharmaceutical University
3.Kelun Group
4.Jiangsu Hengrui Medicine Co., Ltd.,
5.Yangtze River Pharmaceutical Group
6.CSPC Pharmaceutical Group Limited
7.Shanghai Pharmaceuticals Holding Co., Ltd.
8.Tsinghua University
9.Peking University
10.HISUN
11.china tai tianqing
12.Hebei Tiancheng Pharmaceutical Co., Ltd
Almost all the domestic universities,and Large pharmaceutical companies
The details please consult the ATS Industrial Co. Ltd.
