500 series high-flow pumps
500 series pumps comprise a choice of pumpheads made from chemical resistant materials. A wide range of powerful AC, DC and brushless DC drives provide power and control options for flow rates up 3,500 mL/min. Changing a tube is the only routine maintenance required.
Pumpheads

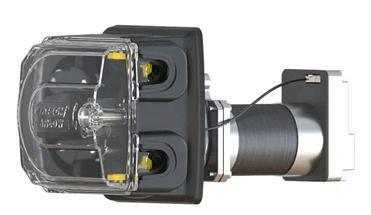

520R/R2 pumpheads feature two sprung rollers and transparent cover so you can see the pump running easily. Pumpheads accept eight sizes of continuous tubing up to 9.6 mm bore. 520R for 1.6 mm wall and 520R2 for 2.4 mm wall thickness tubing for lower inlet pressure or higher viscosity.
520RE LoadSure® element pumpheads guarantee perfect tube loading, one-minute maintenance and pressure up to 7 bar (dependant on the choice of drive);
520REL—LoadSure® elements for 0–2 bar operation
520REM—LoadSure® Elements for 0–4 bar operation
520REH—LoadSure® Elements for 0–7 bar operation
Drives
520DriveSure: 12 V to 48 V DC integrated BLDC motor with Industrial Ethernet and analogue control options, sealed mounting plate and PC software (WM Connect). Flow rates up to 3,500 mL/min
520VBM: 24 V brushless DC drives with two maximum speeds, flow rates up to 2,850 mL/min
520FAM: 50 Hz or 60 Hz single phase, induction motor drive in five maximum speeds, flow rates up to 2170 mL/min
520FDM: 12 V and 24 V DC drives in four maximum speeds, flow rates up to 3,450 mL/min
