ALFC8/2 Auto Liquid Filling And Capping Monobloc

Category:Pharmaceutical Packaging Machinery > Bottle Filling Line
Product Name:ALFC8/2 Auto Liquid Filling And Capping Monobloc
Price(USD):Negotiable
Company:Aligned Technology Co., Ltd.

Basic Info
  • Factory Location: Zhejiang,China

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa

  • Monthly Production Capacity: 20 Set/Sets per Month

    Packaging Information: wooden box

  • Delivery Lead Time: 35 working days

    Sample Provided: no

    Payment Terms: T/T

    Application

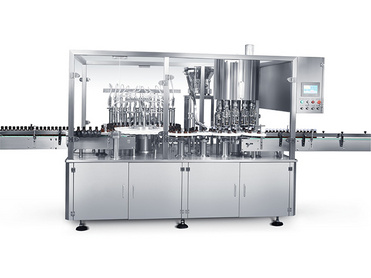

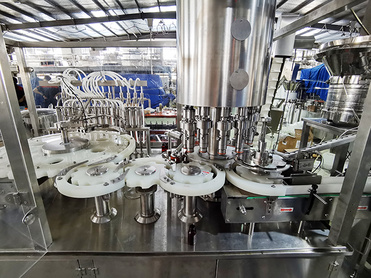

    Automatic Filling and Capping monobloc is customized for bottle liquid filling and plastic screw cap capping (alternative alum. seaming). The machine is composed by a wide in-feed conveyor, SS316L volumetric piston pump with servo system, track top-bottom filling nozzles, liquid buffer tank, bottle index wheel sets, rotary turret, capping assembly etc.



    Feature

    1. The machine adopt SS316L Piston Pump, high filling accuracy

    2. Index wheel overload protection installed

    3. Safety protection cover, stop machine when you open door

    4. Automatic reject cap remains on capper head

    5. Monobloc design for save space and labor costs

    6. Liquid buffer tank for store liquid



    Parameter

    Model ALFC8/2
    Filling volume 20~1000ml
    Filling pump range 20-100ml \50-250ml\100-500ml\200ml-1000ml
    Cap type Alternative Screw on cap, alum. ROPP cap
    Capacity 3600~5000bph
    Filling accuracy ≤±1%
    Capping accuracy ≥99%
    Power supply 220V 50/60Hz
    Power ≤2.2kw
    Air pressure 0.4~0.6MPa
    Weight 1000kg
    Size 2200×1200×1600
