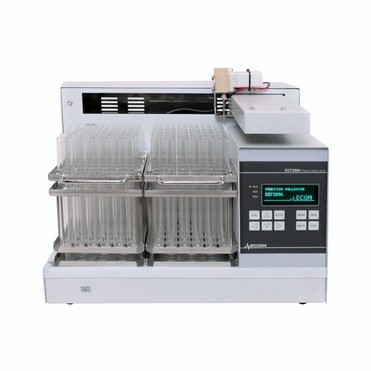

ECOM ECF2096 Fraction Collector

Automation of flash and preparative purification. It collects fractions according to the chosen method which can be created manually using a keyboard, just as using ECOMAC software. Analog input allows fractioning directly by the signal from the detector.

The main features and advantages of the fraction collector:

• Unit simplicity
• Easy programming of fraction collection
• Possibility to connect an electronically controlled valve for special flow functions
• Display information on the running process
• Manual unit control from the keyboard
• Compact size fits most fume hoods

Two racks are easily removable and available for five tube/funnel types. A collect/waste valve is assembled.

Available racks (two racks per unit):

• EC08 48 tubes of 8 ml (OD 12 mm) (384 ml/rack) - by default supplied with the device, tubes with higher volumes are upon request
• EC21 36 tubes of 21 ml (OD 16 mm) (756 ml/rack)
• EC40 24 tubes of 40 ml (OD 20 mm) (960 ml/rack)
• EC60 20 vials of 60 ml (OD 27.5 mm) (1200 ml/rack)
• F12A 12 funnels, 30 mm

Fraction collector operating modes:

• Collects all
• Level (different up and down values)
• Slope (different up and down values)
• Using digital inputs (next, collect, waste)
• Time shift of all collection functions
• Any if it is collected by SW
