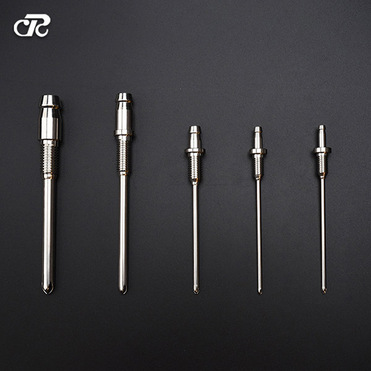

Filling needle/filling nozzle

Chuangrui's newly upgraded filling needle series, the material is made of 316 stainless steel, which has strong corrosion and rust resistance, sturdiness and durability, and is completely hygienic. It meets FDA and GMP production requirements and can be used with different hose equipment.

Experiments have proved that in the process of fluid processing by the peristaltic pump, supporting the use of filling needles can effectively prevent the occurrence of floating pipes, running pipes and other phenomena, thereby solving the embarrassing problems of gas resorption or container adsorption, and ensuring the stability of fluid filling It can improve the accuracy of fluid transmission.

Chuangrui's new upgraded filling needle series, the material is made of 316 stainless steel, which has strong corrosion resistance and rust resistance, strong and durable, completely hygienic, and meets FDA and GMP production requirements; and it is equipped with two flat mouth designs and petal mouth designs. The various size options of the model can be used with different hose equipment, which provides an efficient solution to the diverse fluid needs of customers.

  Features

　　·The size and length of the model can be customized, and the flow carrying capacity is wide, which can meet more filling needs;

　　·All 316 stainless steel pipe body, not easy to rust, not easy to damage, high sanitation and safety level;

　　 Pagoda joint: the hose connection is easier to operate, which is conducive to the deepening and strengthening of the joint position;

　　·Threaded interface: strong stability, convenient installation of different equipment;

　　·At the exit, there are different choices of flat mouth design and petal mouth design to meet the different needs of customers:

　　The wide application of filling needles

Chuangrui's customer base covers all fields, and the application of peristaltic pump-filling needles involves all walks of life: including food filling such as beverage soup, capsule medicine and other medicine filling, as well as daily chemical products, industrial products, etc. Kind of liquid packaging. The diameter and model of the filling needle and the length of the needle tube can be customized. It has strong adaptability and can be used for large bottle filling, small bottle filling, single bottle filling and multi-bottle filling.

technical parameter

Model 16# / 25#（15#）/17# / 18# / 36# / 82#Flat-mouth filling needle (customizable)
16# / 25#（15#）/17# / 18# / 36# / 82# closing type filling needle
Style Flat mouth type|close mouth type
Length is 10cm and can be customized
Material 316 stainless steel
Grade Pharmaceutical grade|Food grade, in line with FDA hygiene grade and GMP production requirements
Interface Threaded interface
Connector Pagoda Connector
Support hose 16#, 25# (15#), 17#, 18#, 36#, 82#
Industrial applications It can meet the filling needs of peristaltic pumps in most industries. It is often used in pure water, distilled water, medicines, sauces, vinegar and other food and drug equipment with high hygiene requirements, as well as occasions with strong corrosive properties such as the chemical industry.
Installation method No fixed-end equipment: directly insert the connector into the hose until it fits tightly (if the flow rate is large, it can be used with clamps | banding, double reinforcement); if there is a fixed-end equipment, the threaded interface needs to be screwed into the equipment The interface is fixed.
Remarks The length and model can be customized, and the order is 10, and the delivery period is 10-15 days
Selection guide

Fitting peristaltic pump hose model: (mm)

Filling needle 16#平口 25# | 15#平口 17#平口 18#平口 36#平口 82#平口
16#收口 25# | 15#收口 17#收口 18#收口 36#收口 82#收口
Hose model 16# 25# | 15# 17# 18# 36# 82#
Pipe inner diameter*wall thickness 3.3*1.6 4.8*1.6 | 4.8*2.4 6.4*1.6 7.9*1.6 9.6*2.4 12.7*3.2
