FL FLUID-BED GRANULATOR

Category:Preparation Equipment > Preparation Machinery for Solid Medcine > Granulator
Product Name:FL FLUID-BED GRANULATOR
Price(USD):15000-95000$
Company:Jiangyin Snynxn Granulating Drying Equipment Co.,Ltd

Basic Info
  • Factory Location: Jiangyin city,Jiangsu,China

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa

  • Monthly Production Capacity: 30

    Contract Manufacturing: CMO

    Packaging Information: EXPORT WOODEN BOX

  • Delivery Lead Time: 2-3 months

    Sample Provided: no

    Payment Terms: T/T

    Principles

    The powder granule in the container (fluidization)appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules.

    Features

    ●Because of powder granulation, the fluidity is improved and the dust is reduced;
    ●Because of powder granulation, its solving property is improved;
    ●The mixing, granulation and drying can be completed in one step inside the machine;
    ●The operation of equipment is safe because the anti static filtering cloth is adapted;
    ●The operating personnel can not be damaged if explosion take place because there is releasing hole;
    ●The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.

    Applications

    ●Pharmaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medicine.
    ●Foodstuff: cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
    ●Other industries: pesticide, feed chemical fertilizer, pigment, dyestuff and so on.
    ●The drying of wet powder and granule.
    ●Coating: protective layer,coloration,control releasing,film and enteric-releasing slow of granule and pellet.

    Coating: protective layer,coloration,control releasing,film and enteric-releasing slow of granule and pellet.

    Technical parameters

    Item 单Unit   机型type
    3 5 15 30 60 120 200 300 500
    原料容器 Container 容量Volume L 12 22 45 100 220 420 670 1000 1500
    直径 Diameter mm 300 400 550 700 1000 1200 1400 1600 1800
    生产能力 Capability 最小Min Kg 1.5 4 10 15 30 80 100 150 250
    最大Max Kg 4.5 6 20 45 90 160 300 450 750
    风机Fan 风量Capacity m3/h 1000 1200 1400 1800 3000 4500 6000 7000 8000
    风压Pressure mmH2O 375 375 480 480 950 950 950 950 950
    功率Power kw 3 4 5.5 7.5 11 18.5 22 30 45
    蒸汽消耗量Steam consumption Kg/h 9 12 42 70 141 180 282 366 451
    压缩空气耗量
    Compressed air consumption
    m3/min 0.3 0.35 0.6 0.6 0.9 0.9 1.1 2.0 2.4
    主机重量Weight of the main body Kg 500 700 900 1000 1100 1300 1500 1800 2000
    蒸汽压力Steam pressure Mpa 0.3-0.6
    温度 Temperature 室温-120℃范围内可调节(adjustable at the range from room temperature to 120℃)
    作业时间Working time min 随物料特性而定45~90 ( decided in accordance with the proplerties of raw materials }
    物料收得率Yield % ≥99
    噪声Noise dB(A) 风机与主机隔离安装,噪声≤75dB{A)(When installation,main machine is separated from fan)
    主机外型尺寸
    Size{L×W×H)
    m 1.0× 0.6×2.1 1.2×0.7×2.1 1.25×0.9×2.5 1.6×1.1×2.5 1.85×1.4×3 2.2×1.65×3.3 2.34×1.7×3.8 2.8×2.0×4.0

    3×2.25
    ×4.4

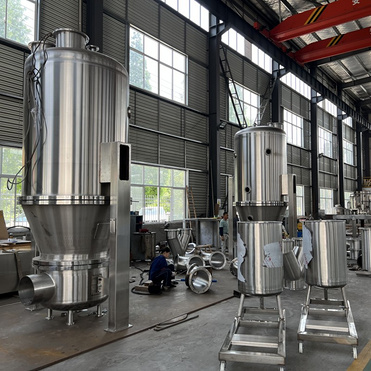

    OUR FACTORY:
