Glass Fiber Pleated Filter Cartridge for Process Filtration

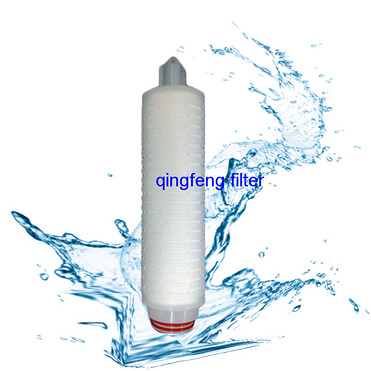

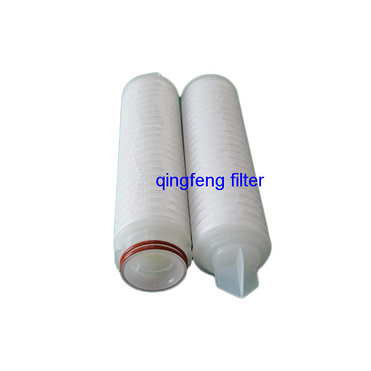

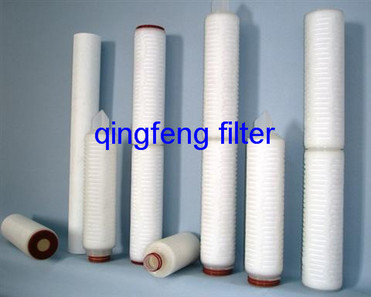

Glass Fiber Pleated Filter Cartridge

Glass Fiber pleated filter cartridge is made of glass fiber membrane, polypropylene non-woven fabrics and polypropylene cage. During the production, it is purity, free of surfactants, resins, binders and adhesives. It can be used for the liquid and gas prefiltration and clarification.

● Features and Benefits

1. Superfine glass fiber
2. High dirt holding capacity, excellent flow performance and longer service life;
3. Suitable for the removal of colloids, lipids, protein aggregates and particles;
4. Good oil resistance, wide chemical compatibility;
5. Economical and ideal choice for the prefiltration and guard filtration before critical filtration
● Micron Rating（µm）: 0.45   1.00     3.00    5.00     10.0     20.0   30.0

● Typical Applications

1. Clarification of wine, spirits, fruit juices, soft drinks or other beverages;
2. Serum and blood prefiltration
3. Colloids and viscous contaminants removal in pharmaceuticals, as vaccines, culture medias, etc.
4. Cell culture fluids after cell harvest

● Materials of Construction

Filter Media: Glass Microfiber
Support Layer: Polypropylene
Inner Core: Polypropylene/Stainless Steel
Outer Core: Polypropylene

●Cartridge Dimensions

Outer Diameter: 69mm
Inner Diameter: 33mm
Effective Filtration Area: ≥0.50m2

●Operation Conditions

Normal Operating Temperature: ≤60℃
Max. Operating Temperature: 85℃(△P≤0.10Mpa)
Max. Differential Pressure:  Normal Flow direction：4.2 bar at 25℃
Reverse Flow direction: 2.1 bar at 25℃
Steam Sterilization for 30 minutes at 121±2℃
PH Value compatibility: 1-13

●Cartridge Safety

Endotoxin: ＜0.25 EU/ml
Extractable: 0.03g/10”
