Product Name:Lithium Battery Material Chemical Pharmaceutical Plate Dryer
Company:JIANGSU YUTON DRYING ENGINEERING CO.,LTD
Factory Location: Tianning District, Changzhou, Jiangsu Province, Cheng Shun town jiaoxi River Road 68
Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Monthly Production Capacity: 50-80
Contract Manufacturing: CRO,CMO

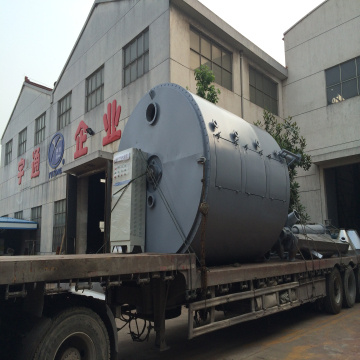

Packaging Information: wooden case
Delivery Lead Time: 30days
Sample Provided: no
Payment Terms: TT L/C

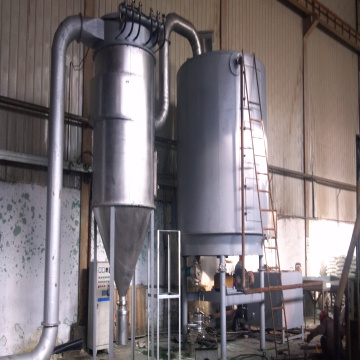

PLG continuous plate dryer is a kind of high-efficiency continuous drying equipment. Its unique structure and working principle determine this drying machine has the characteristics, such as high thermal efficiency, low energy consumption, small space occupation and easy operation. PLG continuous plate dryer can be divided into normal pressure type, close type and vacuum type. Its drying areas range from 4 m2 to 180 m2. Equipped with corresponding auxiliary equipment, this drying machine can meet the drying requirements of various materials.

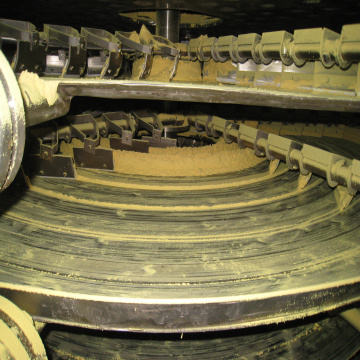

Wet materials are continuously fed into the first layer drying plate on the top of the dryer. They will be turned and stirred by the rakes whose arms make rotational motion. The materials flow through the surface of the drying plate along the index spiral line. On the small plate the materials will move to the outer edge and drop down to the large drying plate. On the big one they will move inward and drop to the small plate on the next layer from the central hole. Both small and large drying plates are arranged alternately so that the materials can get through the whole continuous plate dryer. The heating media will be led into the hollow drying plate. The heating media includes saturated steam, hot water and conduction oil, and it will enter from one end and derive from the other end. The dried materials will drop from the last layer of the drying plate to the bottom layer of the shell. Finally, they will be transferred to the discharge port by the rakes. The moisture escapes from materials and will be expelled from the wet discharge port on the top cover. The moisture of vacuum type drying machine will be drawn out by the vacuum pump. Drying pasty and heat sensitive materials, this continuous plate dryer can recover the solvent and conduct pyrolysis and reaction operation.
PLG continuous plate dryer is appropriate for drying, calcining, pyrolysis, cooling, reaction and sublimation in the chemical, pharmaceutical, pesticide, food and agricultural industries. This drying machine is mainly used in the following fields:
1. Organic chemical products: resin, melamine, aniline, stearate, calcium formate and other organic chemical material and intermediate
2. Inorganic chemical products: calcium carbonate, magnesium carbonate, white carbon black, sodium chloride, cryolite, various sulfate and hydroxide
3. Medicine and food: cephalosporin, vitamin, medicinal salt, aluminium hydroxide, tea, ginkgo leaf and starch
4. Fodder and fertilizer: biological potash fertilizer, protein feed, grain, seed, herbicide and cellulose
For more information, please refer to PLG continuous plate dryer.
Parameters of Continuous Plate Drying Machine
|Specifications||Outer Diameter (mm)||Height (mm)||Drying Area (m2)||Power (kw)||Specifications||Outer Diameter (mm)||Height (mm)||Drying Area (m2)||Power (kw)|
Company introduction :JIANGSU YUTONG DRYING ENGINEERING CO.,LTD
Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.
At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.
Invite your company personnel to our company, communicate with each other on technical requirements,to understand correctly about material features and other specific requirements, comprehensive technical strength and long-term experience,design production meet the requirements, more sophisticated equipment.
We responsible is to debug the equirement accord with your company requirements of various technical data,operators will go to your company tell u equipment features and operation key points, so that the equipment running in the best condition.
we provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every yearto know more customer needs,like customer operation problems in the process of production equipment,our company will go scene and help u 24 hours (72 hours in other country)
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment.Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement. (except belongs to the buyer's error)
We look forward to cooperating with partners from all the world to build win-win
cooperation relationship in long term. Welcome for your visit and instigation!
