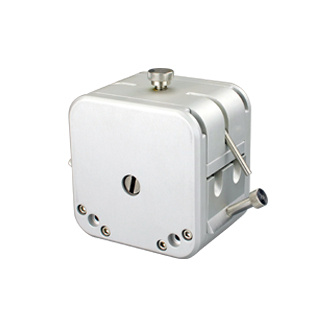

LP25 series

·Pump head-the pump head adopts all-metal structure with high mechanical strength
·Features-low pulse, adjustable pressure, can meet high-precision filling requirements
·Appearance-streamlined design, sturdy and beautiful, easy to install
·Structure-Two sets of rollers are designed with complementary phase differences, which can effectively reduce fluid fluctuations and can be installed with double "Y" hoses
·Pressure-flow rate and hose pressure are higher than ordinary pump heads

·Pump head-all metal structure
·Roller-304 stainless steel
·The pump head shell is made of aluminum alloy material, anodized, and the process is fine. It has the advantages of light weight, low vibration, low noise, good stability, waterproof, dustproof, anti-corrosion, high temperature resistance, and long service life.

Pump head Hose model Inner diameter*Outer diameter (mm) Maximum speed (rpm) Maximum flow (ml/min) Per min
Ml/rev
LP25 2.4*2.4 2.4*4.8 350 420 1.2
3.2*2.4 3.2*8.4 350 720 2
15# 4.8*9.6 350 1680 4.8
24# 6.4*11.2 350 2650 7.6
35# 7.9*12.7 350 3200 9.4
36# 9.6*14.4 350 4000 11.4
