Product Name:Micro reactor
Price(USD):0.00
Company:SHANGHAI YANZHENG EXPERIMENTAL INSTRUMENT CO.,LTD.
Factory Location: No. 5440 Songjin Highway, Tinglin Town, Jinshan District, Shanghai
Main Sales Markets: Asia
Sample Provided: no

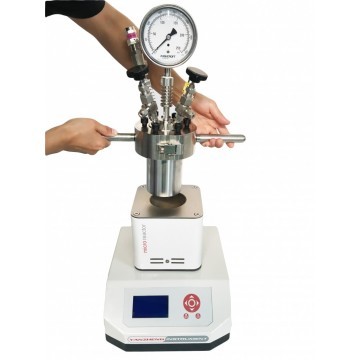

Miniature reaction Kettle (YZPR series)
Product Profile:
The micro-reaction kettle developed and produced by the rock sign instrument passed the National patent Certification Patent number:ZL 2017 3 0231720.3 ;ISO9001 certification;2015 EU CE certification, suitable for laboratory work table, small size, easy to operate, maximum operating temperature: ℃; maximum working pressure:10mpa;
The use of high temperature resistant strong magnetic technology:
Magnetic stirring: Stirring speed 1500 rotation / score, suitable for low viscosity of the material stirring use;
Magnetic coupling stirring: Using magnetically coupled technology, stirring paddle stirring, static seal,0 leakage, suitable for viscous materials and magnetic materials stirring use.
Product Features:
1. Compact Size: The size of the equipment 30cm*40cm*70cm, We know the value of laboratory space, powerful and small size.
2. Professional Development:Mr-controller Reaction Kettle Professional controller, designed for the reaction kettle control, temperature control, heating fast.
3. At a glance:LCD LCD display, the first use, reaction kettle of the various settings data, can also be at a glance!
4. efficiency first: Heating using solid cast copper module, the end of the reaction can be quickly pulled away from the heating module, improve the efficiency of the experiment.
Selection Guide:
yzpr- ①②
Stirring form: "(M)" means mechanical agitation; unsigned indicates magnetic stirring
Reaction Kettle Volume (ML): Standard optional "25,50,100,250,500"
Example:YZPR-100 (M) 100ML mechanical stirring reaction kettle;
Note: No mechanical stirring device below volume 100ML
Miniature reaction kettle parameter table:
Project
Parameters Stirring form |
Magnetic stirring |
Magnetic coupling stirring |
||||||
Model |
YZPR-25/50/100/250/500 |
YZPR-100/250/500 |
||||||
Volume (ML) |
25 |
50 |
100 |
250 |
500 |
100 |
250 |
500 |
Temperature control mode |
Pid |
|||||||
Material |
Standard 316L stainless Steel (There are also ha alloy, Monel alloy, zirconium, nickel, titanium and other optional) |
|||||||
Temperature control accuracy (℃) |
±0.1 |
|||||||
Use the highest temperature (℃) |
300 |
|||||||
Use pressure (MPa) |
-0.1-10 |
|||||||
Safety protection |
Hydraulic 1.5 times design pressure test, air pressure 1.25 times test pressure Ultra pressure pressure relief of Harrow alloy explosion-proof film |
|||||||
Stirring speed (RMP) |
1500 |
1000 |
||||||
Rated Power (W) |
800~1500 |
|||||||
Mr-controller reaction Kettle Control system |
Overtemperature and fault acoustic and optical alarm system; Timing function: Timing time 0-999min/h is divided into two modes of constant temperature timing and running timing LCD screen display: temperature, speed, working time Positive and negative bidirectional stirring Power configuration : 200-240 v/ac,50-60 Hz |
|||||||
Customizable services |
Non-standard temperature, pressure, material can be customized according to requirements |
|||||||
Quotation details:
Project
Parameters Stirring form |
Magnetic stirring |
Magnetic coupling stirring |
||||||
Model |
YZPR-25/50/100/250/500 |
YZPR-100/250/500 |
||||||
Volume (ML) |
25 |
50 |
100 |
250 |
500 |
100 |
250 |
500 |
Unit Price (RMB) |
16500 |
18500 |
20500 |
23500 |
27500 |
24500 |
27500 |
31500 |
