Potassium Bicarbonate Spray Drying Machine

Category:API Equipment > Extraction Plant
Product Name:Potassium Bicarbonate Spray Drying Machine
Price(USD):30000.00
Company:Jiangsu Yutong Drying Engineering Co.,Ltd

Basic Info
  • Factory Location: Tianning District, Changzhou, Jiangsu Province, Cheng Shun town jiaoxi River Road 68

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa

  • Monthly Production Capacity: 50-80

    Contract Manufacturing: CRO,CMO

    Packaging Information: wooden case

  • Delivery Lead Time: 30days

    Sample Provided: no

    Payment Terms: TT L/C

    Company introduction :JIANGSU YUTONG DRYING ENGINEERING CO.,LTD

    Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.

    At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.

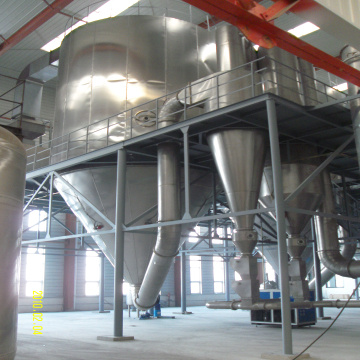

    FACTORY INSIDE
    Professional Centrifugal Spray Dryer Mamufacturer
     Description
    After filtering and heating, the air enters into the hot air distributor at the top of the centrifugal spray dryer, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the spray drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.

    Process Flows of Centrifugal Spray Dryer


    For more information, please refer to the working schematic diagram of LPG spray dryer.

    Application
    LPG high-speed centrifugal spray dryer is a kind of dedicated equipment for drying emulsion, suspension, paste and solution. This spray drying machine is particularly prominent in drying polymers, resins, dyes, pigments, ceramics, glass, rust remover, pesticides, carbohydrate, dairy products, detergents, fertilizer, organic compounds and inorganic compound liquids. Specifically, this centrifugal spray dryer is applied to the following fields:
    1. Pharmaceutical industry
     Including all kind of Active Pharmaceutical Ingredients, chinese medicine, chemical medicine etc.
    2. Chemical industry
    Potassium chloride (sodium chloride), alkaline dyes and pigments, dye intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agents, amino acid and white carbon black.
    3. Plastic resin
    AB, ABS emulsion, urea resin, phenolic resin, polyethylene, polyvinyl chloride, etc.
    4. Food industry
    Rich fat milk, cocoa milk powder, milk replacer, pig blood powder and egg white (yolk)
    5. Food and plant
    Oat, chicken liquid, coffee, instant tea, flavoring meat, protein, soybean, peanut protein and hydrolysate
    6. Carbohydrate
    Corn steep liquor, corn starch, glucose, pectin, malt sugar, potassium sorbate and so on

    Features of Spray Drying Machine
    1.       LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
    2.       This spray dryer has excellent uniformity, liquidity and solubility as well as high purity.
    3.       This spray drying machine has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.

    Technical Parameter of Centrifugal Spray Dryer

    Item/Model LPG
      5 25 50 100 150 200-2000
    Inlet Temperature (ºC)   ≤ 350
    Outlet Temperature (ºC)   80 to 90
    Maximum Moisture Evaporation (kg/h)* 5 25 50 100 150 200-2000
    Drive type of Centrifugal Spray Nozzle Compressed air drive Mechanical drive
    Rotating Speed 25000 22000 21500 18000 18000 15000
    Diameter of Spray Disk (mm) 50 102 108 108 150 180-340
    Heat Source Electricity Electricity Electricity+ steam, fuel oil, gas Electricity+ steam Electricity+ steam, fuel oil, gas Depending on users
    Maximum Power of Electric Heating (kw) 8 31.5 60 81 99
    Overall Dimensions (L × W × H) 1.8 × 0.93 × 2.2 3 × 2.7 × 4.26 3.7 × 3.2 × 5.1 4.6 × 4.2 × 6 5.5 × 4.5 × 7 According to the actual situation
    Dry Powder Recovery (%) ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95 ≥ 95


    CERTIFICATE

    Package:wooden case

    service:
    pre-sale service
    Invite your company personnel to our company, communicate with each other on technical requirements,to understand correctly about material features and other specific requirements, comprehensive technical strength and long-term experience,design production meet the requirements, more sophisticated equipment.
    sale service
    We responsible is to debug the equirement accord with your company requirements of various technical data,operators will go to your company tell u equipment features and operation key points, so that the equipment running in the best condition.
    after-sale service
    we provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every yearto know more customer needs,like customer operation problems in the process of production equipment,our company will go scene and help u 24 hours (72 hours in other country)
    quality promise
    Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment.Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
    Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
    During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement. (except belongs to the buyer's error)

    We look forward to cooperating with partners from all the world to build win-win
    cooperation relationship in long term. Welcome for your visit and instigation!
