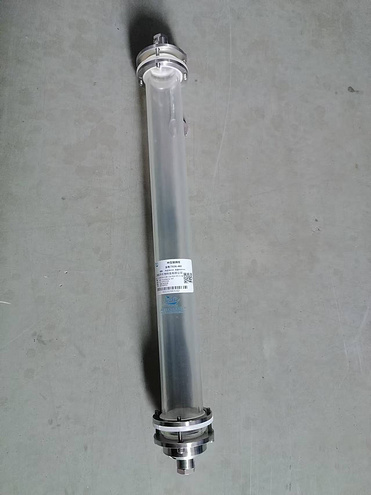

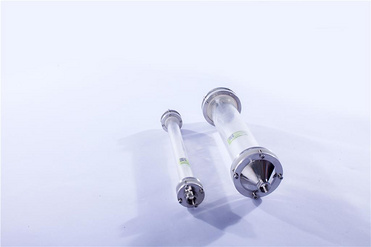

Product Name:TX Medium-High Pressure Glass Column
Price(USD):Negotiable
Company:Shanghai Chenqiao Biosciences Co.,Ltd
Factory Location: Shanghai
Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no
Payment Terms: T/T
Features
High pressure tolerance, it can be connected to both mid-pressure preparative chromatography and high-pressure preparative chromatography, thereby expanding the application scope of the instrument.
The trumpet-shaped column head design ensures more uniform sample distribution, allowing for an increase in sample loading volume and enhancing separation efficiency.
The trumpet-shaped column head can prevent damage caused by high-speed flow.
Inner glass tube stainless steel replaces the traditional six-way valve quantitative ring with jacket,which is beneficial for the separation and rust removal of high-concentration samples.It completely eliminated the phenomenon of high-concentration samples blocking the valve interface.
The flange column enables the easy disassembly and cleaning, significantly reducing the cost of the separation hardware.
Transparent glass enables the operator to visually understand the separation status of colored samples such as natural extracts and pigments.
|
Technical specifications for sampling column and column loader |
||||||
|
Name |
Item No. |
ID |
Length(mm) |
Pressure(bar) |
Filling Volume |
Remarks |
|
Sampling column |
STX10-110 |
10 |
110 |
50-40 |
6.6g |
Standard configure:sampling column and packing reservoir are both male thread couplin Male screw can be screwed in chromatography column's internal/female thread directly.lf needs to connect pipeline directly, please leave note (need pipeline connecting kit) when order. The toolkit can connect different chromatography columns with pipelines. |
|
Sampling column |
STX15-110 |
15 |
110 |
50-40 |
14.8g |
|
|
Sampling column |
STX26-100 |
26 |
100 |
40-30 |
40.3g |
|
|
Sampling column |
STX36-100 |
36 |
100 |
40-30 |
77.3g |
|
|
Sampling column |
STX49-100 |
49 |
100 |
30-20 |
143.2g |
|
|
Sampling column |
STX70-100 |
70 |
100 |
15 |
292.3g |
|
|
Column loader |
ZTX49-100 |
49 |
100 |
30-20 |
143.2g |
|
|
Toolkits |
SC10 |
The toolkit can connect different chromatography columns with pipelines. |
||||
|
Stainless flare headed Medium-High pressure glass column type, size, pressure comparison table (packing material density is calculated according to 0.6/ml) |
|||||||||
|
ID |
Length |
100mm |
230mm |
310mm |
460mm |
920mm |
Pressure |
recommended flow velocity（ml/min） |
|
|
15mm |
Item No. |
TX15-100 |
TX15-230 |
TX15-310 |
TX15-460 |
TX15-920 |
40bar |
5-20 |
With 3 supporting legs |
|
Filling Volume |
10.6g |
24g |
33g |
49g |
97g |
||||
|
26mm |
Item No. |
TX26-100 |
TX26-230 |
TX26-310 |
TX26-460 |
TX26-920 |
30bar |
20-70 |
|
|
Filling Volume |
32g |
73g |
99g |
146g |
293g |
||||
|
36mm |
Item No. |
TX36-100 |
TX36-230 |
TX36-310 |
TX36-460 |
TX36-920 |
30bar |
45-135 |
|
|
Filling Volume |
61g |
140g |
189g |
281g |
562g |
||||
|
49mm |
Item No. |
TX49-100 |
TX49-230 |
TX49-310 |
TX49-460 |
TX49-920 |
20bar |
80-200 |
|
|
Filling Volume |
113g |
260g |
351g |
520g |
1040g |
||||
|
70mm |
Item No. |
TX70-100 |
TX70-230 |
TX70-310 |
TX70-460 |
TX70-920 |
15bar |
170-250 |
With 3 supporting legs |
|
Filling Volume |
231g |
531g |
715g |
1062g |
2123g |
||||
|
100mm |
Item No. |
TX100-100 |
TX100-230 |
TX100-310 |
TX100-460 |
TX100-920 |
10bar |
200-250 |
|
|
Filling Volume |
471g |
1083g |
1460g |
2167g |
4333g |
||||
|
150mm |
Item No. |
TX150-100 |
TX150-230 |
TX150-310 |
TX150-460 |
TX150-920 |
10bar |
200-250 |
|
|
Filling Volume |
1060g |
2437g |
3285g |
4875g |
97520g |
||||
