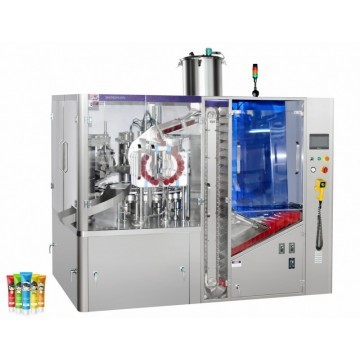

ZHF-160 High-speed double heads Tube Filler and Sealer

ZHF-160 High-speed double heads Tube Filler and Sealer

Key Features

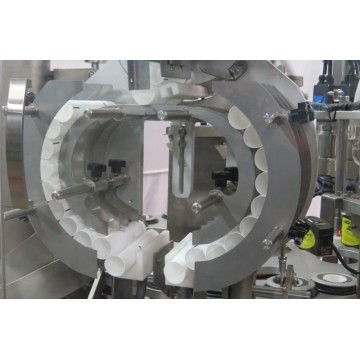

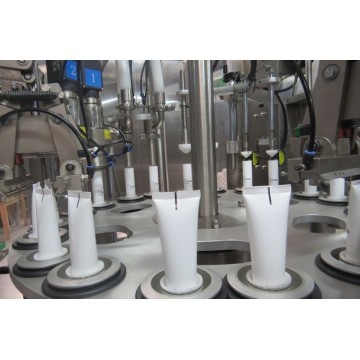

ZHF-160 tube filling & sealing machine is provided with 2 filling heads and a set of double-branch tube feeing system.

Applicable to: plastic composite tubes , aluminum plastic composite tubes and metal tubes(optional)

Optional Devices

◆Externally allocated refrigerator

◆Special-shaped sealing devices (wave type sealing device, arc sealing device, T-shaped punching  hole sealing device, metal pipe folding and sealing device)

◆Jacket and barrel heat preservation device

◆Blending device inside the barrel

◆Blowing and sucking type tube cleaning device

◆Nitriding device before and after filling

◆Automatically controlled material feeding device (pump)

◆Finished tube conveyor

Technical Parameters

Oper ation speed：160/min/(max)

Filling volume：1-300ml

Filling precision：≦±0.5﹪

Suitable tube length：50-240mm

Suitable tube diameter：10-50mm

Power supply：380Volt, 50Hz  (220Volt, 60Hz)

Power of hot-wind generator：3Kw×2

Consumption of compressed air： 1.2 m3

Working pressure：0.6 Mpa

Capacity of hopper：70L

Dimensions：2870×1770×2340mm
