Antiseptic Vacuum Double Tapered Vacuum Drying Machine

Category:API Equipment > Crystalling Equipment
Product Name:Antiseptic Vacuum Double Tapered Vacuum Drying Machine
Company:Jiangsu Yutong Drying Engineering Co.,Ltd

Basic Info
  • Factory Location: Tianning District, Changzhou, Jiangsu Province, Cheng Shun town jiaoxi River Road 68

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa

  • Monthly Production Capacity: 30-50

    Contract Manufacturing: CRO,CMO

    Packaging Information: wooden case

  • Delivery Lead Time: 30days

    Sample Provided: no

    Payment Terms: TT L/C

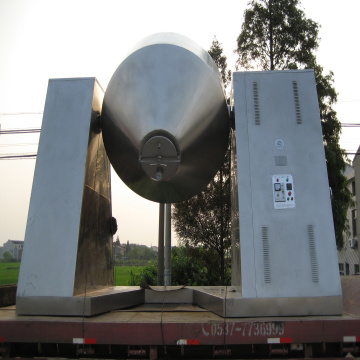

    SZG Series Double Cone Rotating Vacuum Drier,vacuum drying machine, drying equipment
    SZG double cone vacuum dryer is a new type drying equipment which combines similar product technologies at both home and abroad. This rotary vacuum dryer possesses belt and chain two-stage elastic connection modes. With low center of gravity, this drying machine can operate smoothly. Heating medium and vacuum system adopt reliable mechanical seal or rotating joint, so as to avoid defects such as the regular packing seal is easy to leak. On this basis, we modify this double cone vacuum dryer. It not only embodies the humanized design concept but also meets the GMP standards.
    SZG double cone rotary vacuum dryer is applicable for drying and mixing powdery and granular materials in the pharmaceutical, food, chemical, dye and other industries. It is especially suitable for the following materials:
    1.       Thermosensitive materials that cannot withstand high temperature
    2.       Easily oxidized and dangerous materials
    3.       Materials whose solvent should be recovered and materials of poisonous gas
    4.       Materials required low residual volatile content
    5.       Materials with requirements on crystal shape
    Features of SZG Double Cone Vacuum Dryer
    1.       This rotary vacuum dryer has advanced design, simple internal structure, convenient to clean and easy to handle.
    2.       The tubes of heating medium and vacuum system are built in the rack in order to prevent artificial damage and difficult clean.
    3.       The outer wall and rack sealing plate adopt polishing treatment, and the inner container adopts mirror polishing treatment.
    4.       The materials in the double cone vacuum dryer can be rotated due to the revolution of the machine, which can minimize material water content (≤0.5%).
    5.       The materials will not stick to the wall of the container. With big drying rate and energy saving, this rotary vacuum dryer can uniformly and sufficiently dry the materials.
    6.       Condenser and recycling tank are equipped for recovering organic solvent.
    7.       Our double cone vacuum dryer has three types of heat source, including steam, hot water and conduction oil.
    Process Flow Diagram of Rotary Vacuum Dryer

    Technical Parameters of SZG Rotary Vacuum Dryer

    Model 100 350 500 750 1000 1500 2000 3500 4500 5000
    Volume (L) 100 350 500 750 1000 15000 2000 3500 4500 5000
    Maximum Loading Volume (L) 40 140 200 300 400 600 800 1400 1800 2000
    Maximum Loading Capacity (kg) 20 70 100 150 200 300 400 700 900 1000
    Rotating Speed (rpm) 3~13 6 5 4 4 4
    Motor Power (k w) 0.75 1.1 1.5 2.2 3 4 5.5 7.5 11 15
    Floor Area (mm) 2160 × 800 2160 × 800 2350× 800 2560 × 1000 2860 × 1300 3060 × 1300 3260 × 1400 3760 × 1800 3960 × 2000 4400 × 2500
    Rotation Height (mm) 1750 2100 2250 2490 2800 2940 2990 3490 4100 4200
    Design Pressure In Container (MPa) -0.09 to 0.096
    Interlayer Design Pressure (MPa) ≤ 0.3
    Weight (kg) 800 1100 1200 1500 2800 3300 3600 6400 7500 8600


    Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.

    At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.



    Package:wooden case

    pre-sale service
    Invite your company personnel to our company, communicate with each other on technical requirements,to understand correctly about material features and other specific requirements, comprehensive technical strength and long-term experience,design production meet the requirements, more sophisticated equipment.
    sale service
    We responsible is to debug the equirement accord with your company requirements of various technical data,operators will go to your company tell u equipment features and operation key points, so that the equipment running in the best condition.
    after-sale service
    we provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every yearto know more customer needs,like customer operation problems in the process of production equipment,our company will go scene and help u 24 hours (72 hours in other country)
    quality promise
    Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment.Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
    Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
    During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement. (except belongs to the buyer's error)

    We look forward to cooperating with partners from all the world to build win-win
    cooperation relationship in long term. Welcome for your visit and instigation!
