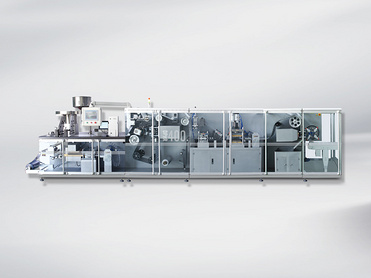

DPHR-260/400H/K/L Roller Type (AL/PL/AL) Blister Packaging Machine

Name: DPHR-260/400H/K/L Roller Type (AL/PL/AL) Blister Packaging Machine
Availability: dphr-260-400h-k-l-roller-type-al-pl-al-b-385045.html

Category:Pharmaceutical Packaging Machinery > Blister Packaging Machine
Product Name:DPHR-260/400H/K/L Roller Type (AL/PL/AL) Blister Packaging Machine
Price(USD):Negotiable
Company:Ruian Jianghua Machinery Co., Ltd.

Send Inquiry

Favorites

Similar Products

SML-1201 high-speed vertical 5×2 blister loading machine

DPH-260 Automatic Blister Packing Machine

DPH-320H Automatic blister machine

DPH-400H/DXH-300 AL-PVC Blister/ Cartoning production line

SML-1001 blister feeding machine

DPH-260L Roll-plate Blister Packaging Machine

AUTOMATIC MULTIFUNCTIONAL PACKAGING MACHINE (DH-180)

Automatic high speed cartoning machine

DPHR4O0K/L+DXH400 Bliser /Carton Packaging Integrated Machine

AUTOMATIC AMPOULE / VIAL PACKAGING PRODUCTION LINE, PBL-260D

Basic Info

Factory Location: Zhejiang

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

Cutting efficiency Aluminum plastic aluminum/Aluminum aluminum: 120 times/minute (stable production capacity: 300-360 boards/minute) Aluminum plastic: 40-200 times/minute (Stable production capacity: 600-800 boards/minute) Max. forming area 390 x 210mm Max. forming depth 12mm Travel adjusting range 150 ~ 250mm Standard plate size Aluminum plastic aluminum/Aluminum aluminum: 68 x 90mm PVC width and thickness Thickness 0.15~0.30mm, width 230~400mm The outer diameter of the roll film is ≤ 600 mm, The aperture of the membrane roll is between 72-76 mm PTP width and thickness Thickness 0.02~0.03mm, width 230~400mm The outer diameter of the rolled film is ≤ 260 mm, The aperture of the membrane roll is between 72-76 mm Tropical aluminum width and thickness Thickness 0.09mm, width 230-400 mm The outer diameter of the rolled film is ≤ 260 mm, The aperture of the membrane roll is between 72-76 mm Power supply and power 380V 50HZ, main motor 4KW, heating 24KW, 5 sets of servo 4KW Total power: 32KW Gas consumption ≥0.5m³/min Water for cooling Tap water or circulating water consumption of 60L/H Machine size 7000 x 1386 x 2200mm Machine weight 7500kg
