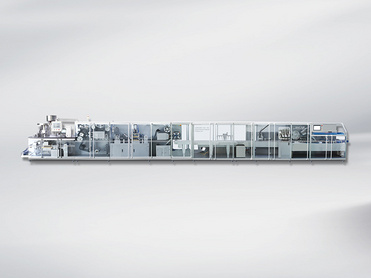

DPHR4O0K/L+DXH400 Bliser /Carton Packaging Integrated Machine

Name: DPHR4O0K/L+DXH400 Bliser /Carton Packaging Integrated Machine
Availability: dphr4o0k-l-dxh400-bliser-carton-packagin-385053.html

Category:Pharmaceutical Packaging Machinery > Blister Packaging Machine
Product Name:DPHR4O0K/L+DXH400 Bliser /Carton Packaging Integrated Machine
Price(USD):Negotiable
Company:Ruian Jianghua Machinery Co., Ltd.

Send Inquiry

Favorites

Similar Products

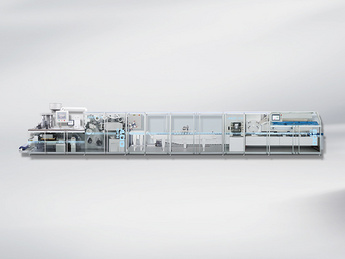

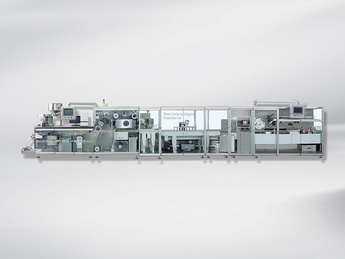

DPH380S-DXH500S pharmaceutical blister packaging intelligent production line complete system (full s

Aluminum Blister Packaging Machine

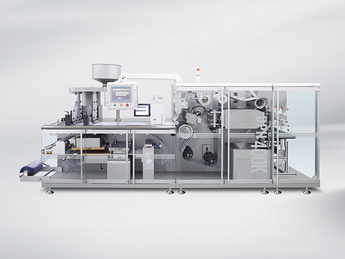

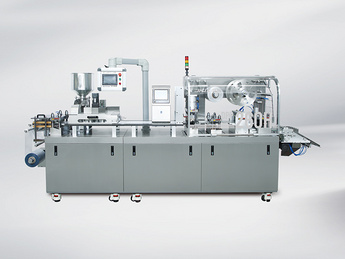

Blister packaging machine

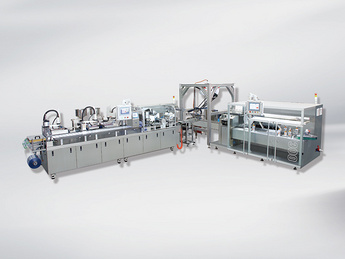

DPR-320G /DXH-130 Blister and Cartoning machine production line

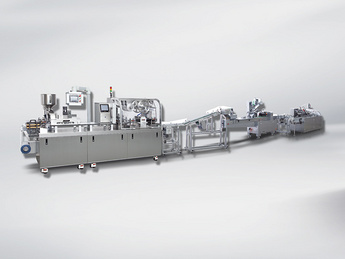

DPH260L-DXH300 Roller Type (AL/PL) Blister / Cartoning integrated production line

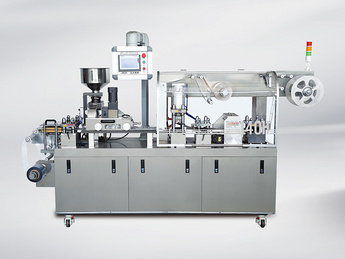

DPHR 260K/L Roller Type (AL/PL/AL) Bister Packaging Machine

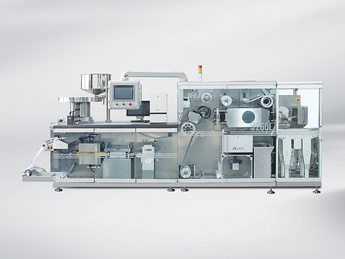

DPR 320G Tropical(AL/PL/AL )Blisler packaging machine

PF-680Adjustable Cellophane Tri-dimensiona Overwrapping Machine (with tear type)

Multi-functional intelligent automatic cartoning machine

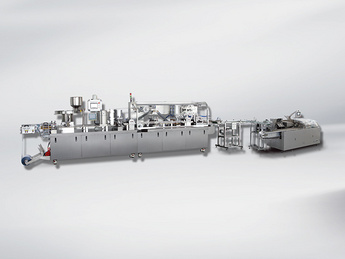

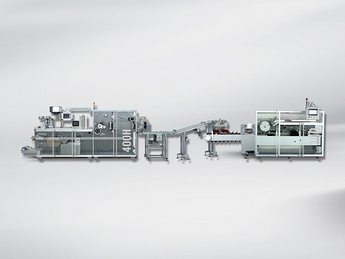

DPH-400H/DXH-300 AL-PVC Blister/ Cartoning production line

Basic Info

Factory Location: Zhejiang

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

bubble cover Department branch Cutting efficiency Aluminum plastic aluminum/aluminum aluminum: 120 times/minute (Stable production capacity: 300-360 boards/minute) Aluminum plastic: 40-200 times/minute (Stable production capacity: 600-800 boards/minute) Max. forming area 390 x 210mm Max. forming depth 12mm Travel adjusting range 150 - 250mm Standard plate size Aluminum plastic aluminum/Aluminum aluminum: 68x90mm PVC width and thickness Thickness 0.15-0.30mm, width 230-400 mm The outer diameter of the rolled film is ≤ 600mm, The aperture of the membrane roll is 72-76mm PTP width and thickness Thickness 0.02-0.03mm, width 230-400 mm The outer diameter of the rolled film is ≤ 260mm, The aperture of the membrane roll is 72-76mm Tropical aluminum width and thickness Thickness 0.09, width 230-400 mm The outer diameter of the rolled film is ≤ 260mm, The aperture of the membrane roll is 72-76mm pretend box Department branch Encasing speed 80-400 boxes/min Box Quality requirement 250- 350g/m² according to its dimensions to confirm Dimension range ( L x W x H ) (70-200) x (50-120) x (14- 70)mm Leaflet Quality requirement 60-70g/mm² Unfolded leaflet specification (80- 260) x (90- 190)mm Folded leaflet specification 1-4 Fold Compressed air Working pressure ≥0.6mpa Air consumption 20m³/h
