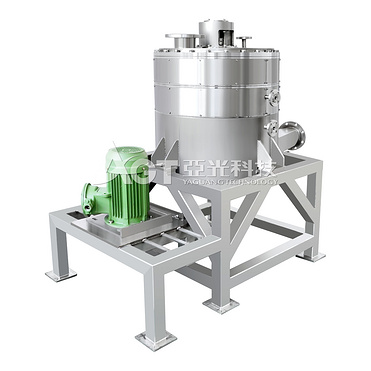

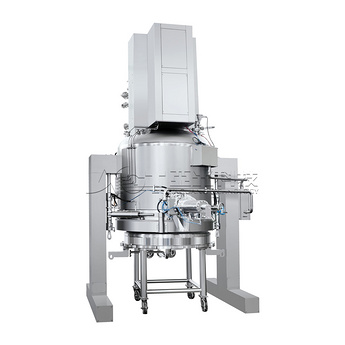

Higee Rotating Zigzag Bed(RZB)

Advantages

1. Low overall height and small size,  applicable in limited space;
2. High separation efficiency, stable performance, low energy consumption;
3. Low investment and maintenance cost;
4. Easy operation, maintenance friendly, safe and reliable;

The Efficient Rotating Distillation Bed replaces the conventional gravity field with the centrifugal field (known as Higee) that is hundreds to thousands of times gravity generated by high speed rotation. Under the Higee environment, the ratio surface area of gas-liquid contact is extremely large, its excellent micro mixing and fast phase interface update, can greatly increase the gas-liquid mass transfer process rate, thus, a giant distillation tower can be turned into a bed with height that is less than two meters. The Efficient Rotating Distillation Bed is able to increase the efficiency, reducing the volume and on some occasions, energy consumption can be significantly reduced.

With low volume, high speed, less retention fluid and short holding time, the Efficient Rotating Distillation Bed is suitable for separating materials that can be decomposed at high temperature for a long time. Due to its small size, we can ignore the factors that must be considered in the construction of rectifying towers, such as wind resistence, lightning strikes, earthquakes and aerial operations, greatly improve the production safety.

For the development of the enterprise, space resources can be saved, as well as optimizing operations, reduce labor intensity, increase production safety. The Efficient Rotating Distillation Bed has been industrially applied in chemical, pharmaceutical, environmental protection, biological and other industries, is being selected by more and more users.

Main material

According to the requirements of users, material contact parts  adopt SS304, SS316L, etc.

Application

The Efficient Rotating Distillation Bed is widely used in the recycling or separation and purification of solvents such as methanol, ethanol, isopropyl alcohol, acetone, acetonitrile, tetrahydrofuran, dichloromethane, ethyl acetate, toluene and other organic solvents, has been industrially applied in chemical, pharmaceutical, environmental protection, biological and other industries

The pilot system

We can provide small pilot system to customers. The system is mainly composed of Efficient Rotating Distillation Bed, reboiler, condenser, raw material tank, finished product tank and feeding pump and etc. It is electric heating and automatic controlled. Operations are very easy, we can have final product within one hour
