Maglev Vapor Compression Distiller (Vertical Type)

Maglev state-of-the-art steam compressor
0 friction, 0 oil, 0 cooling water
Compliance with GMP, cGMP, FDA, ASME, CE

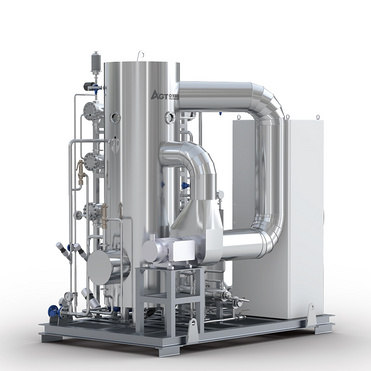

Overview of AGT Vapor Compression Still

Vapour compression distillation is a high efficiency method to produce water for injection (WFI), the WFI produced by AGT vapor compression distillation system can meets the most strict pharmaceutical standard and in accordance with all recognized pharmacopoeias.

• The produced water quality is excellent, with a conductivity of
• The WFI generation system features a five-stage preheating process, effectively utilizing the residual heat.
• All heat-exchangers are designed with a dual-tube plate structure, with the inner tube plate expanded and the outer tube plate welded, meeting cGMP and FDA standards.
• Materials in contact with purified water, secondary steam, and injection water are made of 316L stainless steel, with a surface roughness of Ra ≤ 0.4 μm.
• Non-pressure vessels ensure high safety, making operation and maintenance easier.
• Compared to multi-effect distillation, this vapor-compression WFI still operates at lower evaporation temperatures, leading to a longer lifespan and reduced risk of red rust formation.
• Siemens PLC automation control allows for one-touch start/stop, with strict interlocking controls and automatic detection of system anomalies.
• Real-time energy monitoring modules and cloud services are available for remote monitoring, control, and diagnostic support.
