Low temperature evaporator for Pectin, whey protein&FDC concentration

Category:API Equipment > Concentrator Equipment
Product Name:Low temperature evaporator for Pectin, whey protein&FDC concentration
Price(USD):Negotiable
Company:Shanghai MinJie Machinery Co. Ltd.

Basic Info
  • Factory Location: Shanghai, China

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa

  • Monthly Production Capacity: 10 sets

    Packaging Information: Wooden packing

  • Delivery Lead Time: 120 days

    Sample Provided: no

    Payment Terms: T/T

    .jpg


    6_02

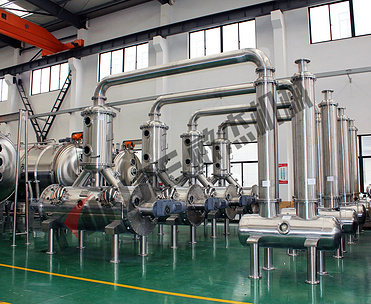

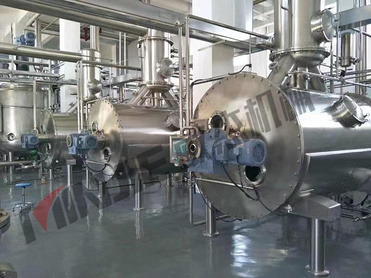

    Vacuum low-temperature evaporator is new concentrating equipment developed by our company.  It realizes low temperature evaporation through high vacuum degree.  There is a spinning roller inside the evaporator.  Hot water is used to heat the bottom of the evaporator and the spinning roller. Continuous spinning of the roller increases evaporation area and speed, resulting in thin film evaporation. By continuous contact with the surface of the spinning roller, the raw thin material is heated to evaporate.  From feed to discharge, the whole concentration process is continuous under vacuum state. Vacuum low temperature evaporator conquers many problems met by traditional evaporator, such as, high concentrating temperature, long concentrating time, denaturation of raw material, easy scale formation during concentration, poor fluidity after concentration and no further concentration.  Because of the low evaporation temperature in our equipment, active ingredients of the raw material are kept.



    EQUIPMENT  ADVANTAGE:
    1.Continuous feed and discharge under vacuum state
    2.Automatic, continuous, closed process
    3.Protection of active ingredients of raw material under low temperature
    4.Adjustable concentration temperature(20-50℃)
    5.No limitation of density, as long as with fluidity
    6.Online density monitor, automatic discharge of finished materials
    7.CIP system, quick & thorough cleaning, no dead corner

    8.Solvents recycling
    9.GMP standards





    Model

    Heating area

    Evaporation

    capacity

    Vacuum degree

    Heating

    media

    Density before

    concentration

    Main dryer power

    Weight

    Outline

    dimension



    square meter

    kg/h

    MPa





    kw

    kg

    m

    MJ-NS-3

    3

    60-100

    -0.098



    Hot water

    With fluidity,density not

    restricted

    3.9

    1500

    3.8×1×3.6

    MJ-NS-5

    5

    150-200

    5.2

    2200

    5.2×1×4.2

    MJ-NS-10

    10

    300-400

    6

    3000

    6.5×1.2×4.2

    MJ-NS-15

    15

    500-600

    8.5

    3800

    6.5×1.2×4.5

    MJ-NS-20

    20

    600-800

    11

    5000

    6.5×1.4×4.6



      The power consumption listed above do not include the vacuum units,water chilling unit,hot water pump.




     -2






    -.jpg6_056_066_08

    FAQ

    6_10

    Question 1: What is the working principle of vacuum low-temperature evaporator?

    Answer: Vacuum low-temperature evaporator realizes low temperature evaporation through high vacuum degree.  There is a spinning roller inside the evaporator.  Hot water is used to heat the bottom of the evaporator and the spinning roller. Continuous spinning of the roller increases evaporation area and speed, resulting in thin film evaporation. By continuous contact with the surface of the spinning roller, the raw thin material is heated to evaporate.  From feed to discharge, the whole concentration process is continuous under vacuum state.



    Question 2: What is the cleaning way? Whether does the machine accord with GMP standards?

    Answer:with CIP cleaning, vacuum low-temperature evaporator is the best choice for GMP performance.



    Question 3: What kind of products can use vacuum low-temperature evaporator ?

    Answer:Suitable for thin, heat-sensitive liquid material that requires low temperature in pharmacetical, food, chemical industries.



    Question 4:How to ship it?

    Answer: Flat Rack+container



    Question 5:What is the delivery time?

    Answer: 120 days



    Question 6:What is the after-sales service type?

    Answer: engineers onsite to guide installation, commissioning and training.



    Question 7:How many years history of your factory?

    Answer: Since 1998.



    Question 8:What is your capacity every year?

    Answer: Over 100 sets.



    Question 9: What is working temperature?

    Answer: 20-50℃(adjustable)
