Multifuncational packaging machine for blister packaging machine

Equipment discripition:

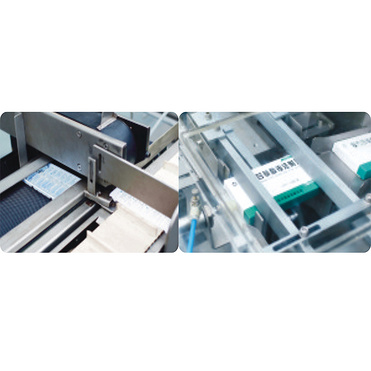

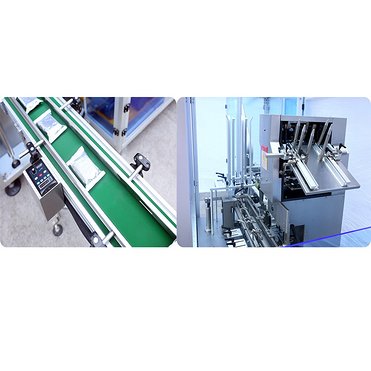

The equipment is mainly used for automatic cartoning after pillow packaging of aluminum-plastic blister plates(including pillow packaging of aluminum foil bag packaged blister plates ) and similar objects

The equipment is mainly used for automatic cartoning of bottle products(round bottles,square bottles, flat bottles, irregular-shaped bottles) it is widely applied for packaging of similar products in such as industries as medicine, daily chemical industry, food,etc.

Technical Parameter

Model：        HDZ-150

Carton size(mm0:    L:50-160 W:20-90 H:12-55

 Speed：        ≤150Cartons/min

 Dimensions:    2280x1050x2030mm

 Weight：     1250KG

Voltage：      380V/50Hz

Power：       1.5KW

Compressed air:   0.6Mpa

Air consumption:30-90L/Min

Main features

1. It adopts variable frequency speed control and PLC automatic control system

2. It adopts the human-machine interface operating system, which automatically displays the cartoning speed, quantity and other performance parameters, and also displays fault causes and operation and maintenance methods.

3. The adjustment and use of various specifications within the stipulated range can be realized in one machine.

4. It is provided with manual and automatic switching functions

5. The use instructions folding and cartoning functions can be completed synchronously.

6. Three rows of batch numbers can be printed on the medicine box synchronously, and the function of printing the serial number can be added.

7. It is provided with the automatic detection system, and the function of positioning, stopping and online elimination is provided for nonconforming products.

8. It can be equipped with the hot melt adhesive machine.
