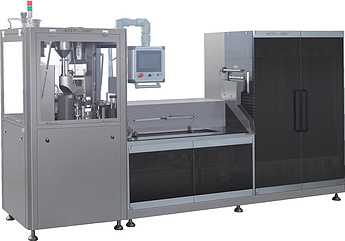

NJP- 5500C Automatic Capsule Filling Machine

Name: NJP- 5500C Automatic Capsule Filling Machine
Availability: njp-5500c-automatic-capsule-filling-mach-313135.html

Category:Preparation Equipment > Preparation Machinery for Capsule, Pill and Suppository > Capsule Filling Machine
Product Name:NJP- 5500C Automatic Capsule Filling Machine
Company:ZHEJIANG TIANHONG MACHINERY CO.,LTD.

Send Inquiry

Favorites

Similar Products

Propantheline Bromide

carbomer 974P

Coenzyme Q10

Refined Fish Oil

Black Currant Extract

Hydrocortisone

Basic Info

Factory Location: ZHEJIANG RUIAN

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Asia,Middle East,Africa
Monthly Production Capacity: 50

Contract Manufacturing: CRO,CMO

Packaging Information: WOODEN CASE
Delivery Lead Time: 60

Sample Provided: no

Payment Terms: T/T

Technical Parameters	Specifications	NJP-5500C
	Maximum yield	330000 Capsules/hour
	machine weight	3200 kg
	Machine volume	1548×1313×2305mm (height with automatic powder feeder: 2900mm)
	power supply	Three-phase five-wire AC 380/220V 50Hz
	total power	12kw
	Number of holes	40 holes
	Vacuum	-0.02～-0.06MPa
	vacuuming	24.5Kpa 210m³/h
	compressed air	Air consumption 12m³/h Pressure 0.3～0.4MPa
	working noise	≤78dBA
	Working temperature	21°C±3°C
	working relative humidity	40-55%
	Capsule on chance	Empty capsule ≥ 99.9% Full capsule ≥ 99.8%
	Adapt Capsules	00#-5# capsule/safety capsule AE
	Loading accuracy	Western medicine ±3% Traditional Chinese medicine ±4%
	Adapt to the filling range	Powder, Granule, Pellet, Tablet
	special function	Powder collector function
	Material	316 stainless steel is used for parts in direct contact with medicines
	specification	Fully sign cGMP requirements
