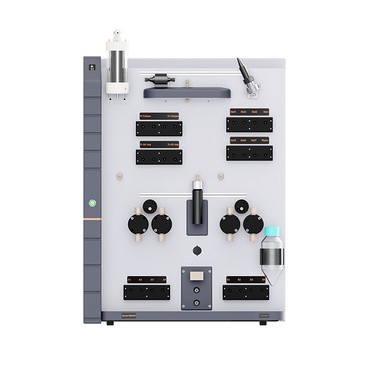

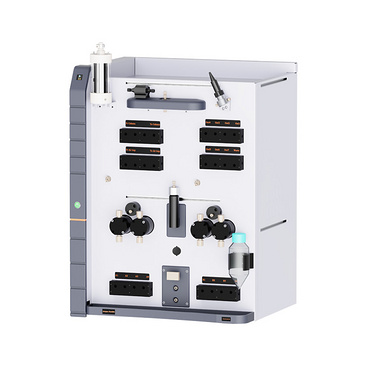

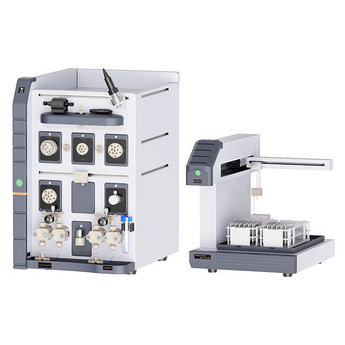

Unique AutoPure Pilot600 - Chromatography system

Summary

Unique Autopure Pilot600 is a benchtop  chromatography system for pi lot scale chromatography process. GMP or non - GMP  configurations are available. The system has a wide range of working flow, pressure resistance and detection range, which can  meet the requirements of process scale - up and small-scale GMP production.

System Overview

●  Unique AutoPure Pilot600 has flexible configuration options, supports chromatography  column of 26mm- 200mm in diameter.

●  Compact and easy to move. Easy to operate with all functional components located on  the front of the device.

●  User-friendly intuitive software design, easy to operate and method editing.

●  High-precision and large-flow plunger pump ensures a stable flow rate and gradient,  which can cover a variety of small-scale, pilot-scale and small-scale production  chromatography process.

●  Accurate online detectors—fixed or variable wavelength UV detector, conductivity and  pH, monitor and record various data of each run.

●  Software with audit trail, user management, e- signature, data analysis and report functions to meet the 21 CFR part11 requirements.

Control System

Unique AutoPure Pilot600 is controlled by the powerful Unique CDSystem chromatography workstation , equipped with brand computer , with friendly interface, intelligent programming, and easy to operate.

● System control

Real- time online monitoring and control, visual flow diagram, make each operation Intuitively visible, shortcut commands is integrated into the flow diagram to make the operation more simple and faster.

● Method editing

Convenient and reliable human- machine interaction interface , easy to create  Methods with pre-programmed phases. You can drag and drop phase modules  To program a method, which is convenient for editing and overview. The edited  Phase module and methods can be saved as a customized phase module or  Methods.script editing is available to support more automatic and customized  Method editing.

● Result analysis

Provides comprehensive analysis functions such as  Chromatogram comparison, peak integration, and result  Export, etc.

● Data storage

Support sql server database, remote data storage,  Automatic backup to ensure data security;

● Audit trail

Multi- level user management mode, electronic signature, instrument and data Operation record tracking, complies with gmp/glp, 21 cfr part11, etc.

Detailed introduction

Unique Autopure Pilot600 comes with standard configuration and also possible to upgrade the modules and change the configuration according to your requirement. The system configuration can be updated by simply adding or removing the modules. Autopure Pilot 600 non - GMP models are provided with general product documentation and operating instructions,with validation  documentation available upon request.Sanitary-grade equipment is available that meets the GMP environment. The final equipment configuration is determined when the order is confirmed. The liquid contact parts in the flow path  are made of sanitary - grade bio-inert materials that meet the GMP standard to ensure that the liquid flows through.

System basic parameters
