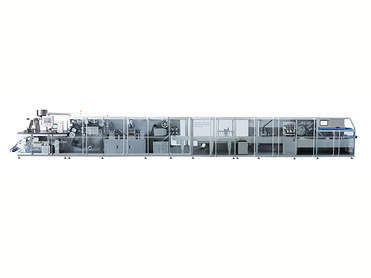

DPHR-400H/K/L Roller Type (AL/PL/AL) Blister Packaging Machine

Name: DPHR-400H/K/L Roller Type (AL/PL/AL) Blister Packaging Machine
Availability: dphr-400h-k-l-roller-type-al-pl-al-blist-385056.html

Category:Pharmaceutical Packaging Machinery > Blister Packaging Machine
Product Name:DPHR-400H/K/L Roller Type (AL/PL/AL) Blister Packaging Machine
Price(USD):Negotiable
Company:Ruian Jianghua Machinery Co., Ltd.

Send Inquiry

Favorites

Similar Products

DPH-320H Automatic blister machine

DPHR-260/400H/K/L Roller Type (AL/PL/AL) Blister Packaging Machine

DPP-260H/DZB-250D/DXH-130 Blister/Pillow type / Cartoning machine production line

SMT-510 balcony type blister machine

DPHR4O0K/L+DXH400 Bliser /Carton Packaging Integrated Machine

DPH-260L Roll-plate Blister Packaging Machine

DPP-260H/DPP-320H Flat-plate Blister Packing Machine

DPR-320G /DXH-130 Blister and Cartoning machine production line

DPHR 260K/L Roller Type (AL/PL/AL) Bister Packaging Machine

Suppositories molding machine SJ-15ZK

Basic Info

Factory Location: Zhejiang

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

Cutting fficiency AL/PL/AL/AL/AL: 40-90 Times/minute ( Stable production capacity: 300-360 boards/minute ) AL/PL: 40-250次/Times/minute(Stable production capacity:: 600-800 boards/minute) Max. forming area 390 x 210mm Max. forming depth 12mm Travel adjusting range 150 ~ 250mm Standard plate size AL/PL/AL- AL/AL: 68 x 90mm AL/PL/: 80x 57mm PVC width and thickness Thickness0.15~ 0.30mm，width 230~400 mm Outer diameter of roll film ≤φ600mm，Film roll aperture φ72-76mm PTP width and thickness Thickness0.02 ~ 0.03mm， width230~400 mm Outer diameter of roll film≤φ260mm,Film roll aperture φ72-76mm Tropical aluminum width and thickness Thickness0.09mm，width :230~400mm Outer diameter of roll film≤φ260mm,Film roll aperture φ72-76mm Power supply and power 380V 50HZ,servo motor: 4KW ,Heating 24KW, 5 sets of servo 4KW, Total power:32KW Gas consumption ≥0.5m3/min Water for cooling Consumption of tap water or circulating water 60L/H Machine size 7000 x 1386 x 2200mm Machine weight 7500kg
