Category:Laboratory > Other Laboratory

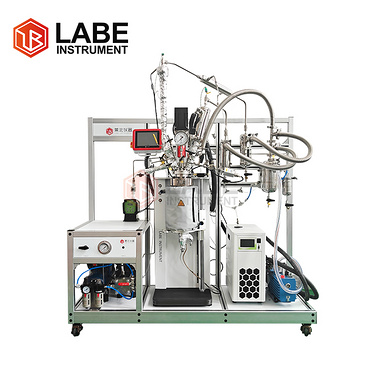

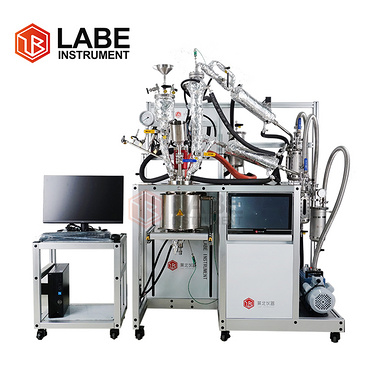

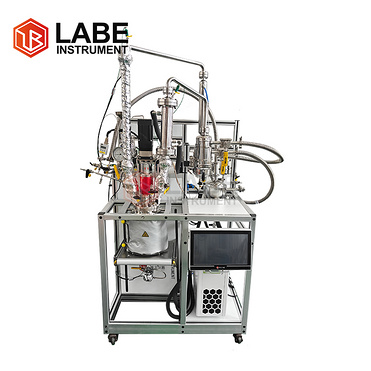

Product Name:Polymerization reaction device series,reactor system
Price(USD):Negotiable
Company:Shanghai LABE Instrument Co., Ltd.
Factory Location: Address:No. 55, Lane 2501, Dushi Road, Minhang District, Shanghai
Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Contract Manufacturing: CRO,CMO
Sample Provided: no
Payment Terms: L/C
Product Features:
Compact structure with quick flange connection
Pneumatic lifting reactor vessel
Industrial-grade full touch-screen operation interface
High-temperature electric heating or external oil bath circulation (optional)
Supports reflux condensation
Supports drainage collection
Supports alcohol collection
Supports water separation
Supports online stirring current monitoring
Equipped with a packed column
Equipped with top-column temperature measurement
Equipped with high-vacuum online monitoring
Bottom discharge with heating jacket
Dual timing modes: insulation timing and start-up timing
Remote control capability with RS485 communication port; optional PC control software
Data acquisition, recording, and report export functions
Digital pressure display with multiple pressure units switchable
Safety interlock system with over-temperature and over-pressure alarms
Adjustable vacuum control
| Category | Details |
|---|---|
| Volume (L) | 0.25, 0.5, 1, 2, 3, 5, 10, 20, 29, customize |
| Heating Power (W) | 1000, 1500, 2500, 2500, 2500, 4000, 6K, 10K, 15K, / |
| Agitation Torque (Nm) | 2.5, 2.5, 2.5, 2.5, 5.2, 5.2, 12, 24, 24, / |
| Agitation Power (W) | 188, 188, 188, 188, 400, 400, 750, 1000, 1000, / |
| Agitation Speed | 50 - 300r/min |
| Design Pressure | 50bar |
| Design Temperature | RT - 300℃ |
| Temperature Control Precision | ±1℃ (under conditions of no strong exothermic or endothermic reactions) |
| Equipment Material | Standard material: 316L; Special materials such as Hastelloy, Monel, Zirconium, Inconel, Titanium, etc. can be customized |
| Operation Interface | 7 - inch color industrial touch screen, modular display, user - defined display modules, customizable module on/off, multi - level menus, multi - window hierarchical management settings |
| Temperature Control Module | PID intelligent temperature control, supports self - tuning, dual - temperature control mode, main control of reactor internal temperature, auxiliary control of heating furnace temperature, temperature control precision ±1℃ |
| Agitation Module | PWM precise speed regulation, up to 300r/min, speed precision ±5r/min |
| Timing Module | With dual - timing modes: heat preservation timing and start timing |
| Pressure Module | Pressure module: Pressure sensor, accuracy 0.5%, 316L material, pressure digital display, with over - pressure alarm interlock, customizable upper limit pressure |
| Lifting Module | Independent one - button electric lifting, easy separation of reactor cover and body |
| Remote Communication | Equipped with remote control function, with MODBUS RTU communication module |
| Current Module | Equipped with online current monitoring function, can check polymerization status |
| Upper Computer Software | * Temperature, agitation, timing, etc. can be viewed and set on the computer via software; * Historical data and operating data can be viewed in real - time; * Can generate data curves for temperature, pressure, rotation speed, etc.; * Data can be exported and saved in Excel spreadsheet format; * Can view equipment alarm records; * Equipped with permission management function; |
| Safety Interlock | Over - temperature and over - pressure alarm, stop operation, cut off heating, user - definable upper limit temperature |
| Expandable Components | Impeller types: Ribbon, frame type, etc.; Online feeding measurement: Online feeding measurement for gas - phase and liquid - phase materials, etc. |
| Equipment Dimensions | Determined according to project conditions |
