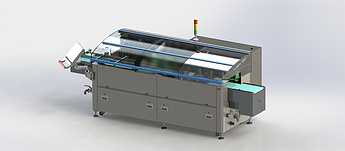

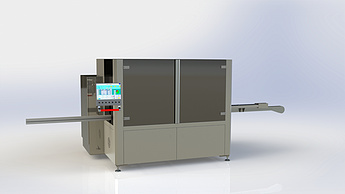

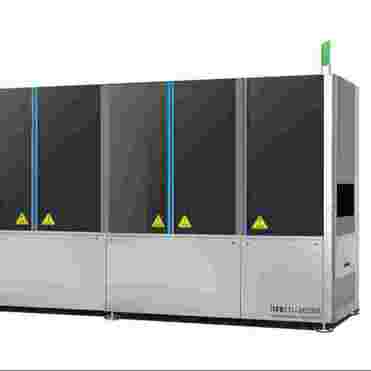

Automatic Intelligent Visual Inspection Machine for Soft Bags

Foreign matter and appearance quality inspection for sterilized soft I.V. solution bags. The soft bags will be automatically loaded by the robot hand to enter the visual inspection machine. This machine can fully inspect the soft bag’s defects like sinking bottom heavy foreign matter, floating foreign matter, suspended foreign matter, foreign matter at the corners, inside/outside the bottle cap, bag body appearance, and inner cap. The machine adopts magnetic levitation track transportation. And the inspected bags will be unloaded orderly by it.

Product Features:

1、Automatic loading by a robot.
2、Comprehensive detection: foreign matter at the corners, heavy foreign matter, floating foreign matter, suspended foreign matter.
3、Comprehensive detection: 360 degrees area of tube mouth top, bag side, and bag body.
4、Equipped with the rotation positioning function. The bags will be rotated to the same sides to be inspected without obstruction.
5、The software has complete traceability function, which can completely save the inspection records, alarm records, operation records, and can be queried at any time.
6、Adopt deep learning algorithm with continuous ability of learning defects.
7、Compatible with a variety of bottle specifications, easy to replace the specifications.

Detection Targets:

1. Top of the cap and the welding area: black spots, stains, foreign matter inside the cap; inner cap, with or without rubber plug, pulling ring, with or without valve piece, cap misplacement; stains on cap tube, black spots, burrs, warped edges, welding black spots.
2. Foreign matter inside the liquid.
3. Bag body appearance defects: sealing distortion, with or without date information, off-position printing, bag distortion.
