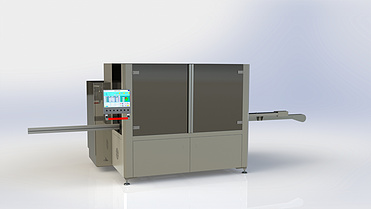

Large Volume I.V. Solution Leakage Detection Machine

When high voltage is applied to the bottle to be detected, the existence of leakage point causes the change of sample capacitive reactance, which leads a sudden jump in the current. The bottole to be inspected is conveyed to the high voltage discharging detection station via turntable input system, and detected through the 2 stations of bottole head and bottom. After the detection is completed, according to the detection result, OK products enter the next process via OK channel and NG products are rejcted by rejection module and enters NG channel. The whole process is fully automatic.

Product feature:

1. Adopting full servo control system, the machine runs smoothly and the handover is precise.
2. Modular design, replace the compatible hardwares according to different bottle types.
3. Strong compatibility, compatible with 50-500ml plastic bottles/stand-up bags.
4. High operational capacity, capable of meeting high output online detection of 400 bottles/minute.
5. High detection accuracy, capable of effectively detecting leaks as small as 5um.

Detection targets:

Including bottle cap, body and bottom.
