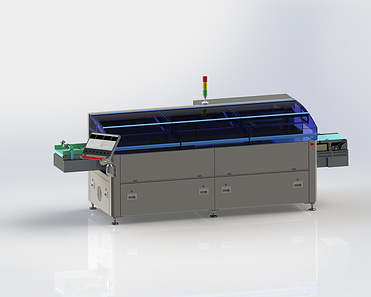

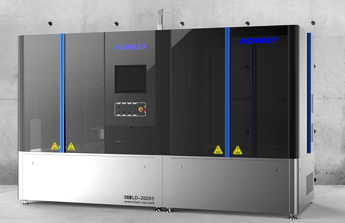

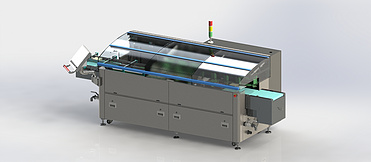

Leak Detector for Soft I.V. Solution Bags

After the products to be inspected are divided and spaced by multi-stage belts, they will be handed over to the bag end clamping mechanism. Then it will move to 4 inspection stations to inspect the bag bottom, bag body, bag shoulder, and cap sealing respectively. After the testing is completed, the qualified products will be transferred to the next process through the qualified lane according to the testing results. Unqualified products will be picked out by the reject module and enter the unqualified lane. The whole process is fully automatic.

Product feature:

1. Modular design, and can change the needle pole according to different bottle types.
2. Reject module is flexible without damaging bottles (split rejection).
3. The equipment can be produced offline and online.
4. The installation, commissioning, operation, and maintenance of the machine meet environmental protection and safety requirements.
5. PLC human-machine interface operation with touch LCD control panel. The control box can be rotated and moved, which is convenient for the operation from multiple positions.

Detection targets:

Includes bag body, bag bottom, bag shoulder and cap sealing
