αβ Valve

Name: αβ Valve
Availability: %CE%B1%CE%B2-valve-385846.html

Category:Fluid Equipment > Valves
Product Name:αβ Valve
Price(USD):Negotiable
Company:SHANGHAI ANSHA FLUID TECHNOLOGY CO., LTD

Send Inquiry

Favorites

Similar Products

F4 PO PE Lining straight pipe and pipe fittings

Safety Valve

Double pin clamp 13SFLiner

Pneumatic ball valve size figure

Stop Valves

2-pcs industrial female thread ball valve

Welded Sample Valve

Rotary Valve Tablet

Electric non-retention ball valve

Clamp non-retention ball valve

Basic Info

Factory Location: Shanghai

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

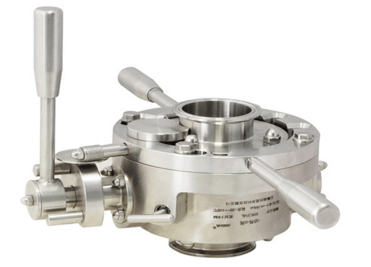

Split Valve is one kind of high precision and engineering valve used for airtight transport sterile powder or powder harmful to human health, to reduce cross pollutant and protect worker. αβ valve assembling with SIP sterilizing structure, do the sterilizing for valve, connected equipment, vessel, IBC cabinet and tank. The valve mainly used for: load/unload powder for Isolator, load/unload for reactor, proportioning, grinding, sampling, IBC transport in airtight condition. Size: 2.0"、2.0"、3.0”、4.0“、6.0"、8.0“ Connection: Tri-clamp、PN6/PN10 Flange Main Material： 316L(Touch the media） 304（Not touch the media） Seal Material: Viton（White colour, standard）, meet FDA requirement EPDM, Silicon, Viton(Option) Sealing Calss：OEB Class 4 (OEL 1-10μm/m3) Operating Pressure: -0.1Mpa~+0.5Mpa Sterilization mode: SIP Anti-explosion Calss: ATEX Ⅱ2 GD T4 Spare Parts: Active pressure plug, Active protection plug, Active washing parts, Passive pressure cover, Passive protection cover, Passive washing parts. Surface: Ra<0.4, Standard（Touch the media） Ra<0.8（Not touch the media） Operation: Manual, Aotumatic
