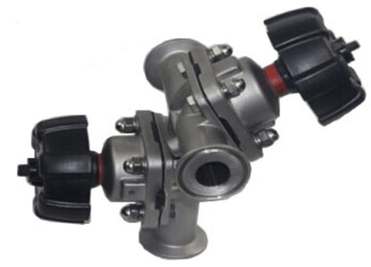

GMP/SAP Diaphragm Valve

Name: GMP/SAP Diaphragm Valve
Availability: gmp-sap-diaphragm-valve-385847.html

Category:Fluid Equipment > Valves
Product Name:GMP/SAP Diaphragm Valve
Price(USD):Negotiable
Company:SHANGHAI ANSHA FLUID TECHNOLOGY CO., LTD

Send Inquiry

Favorites

Similar Products

Safety Valve

Series diaphragm valve

2-pcs industrial female thread ball valve

Butterfly Valve

Threaded Check Valves

Expansion Butterfly Valve

RPP FRPP Valve parts

Custom Made Manual Stainless Steel Handle Threaded Butterfly Ball Valve

Rotary Valve

Can

Basic Info

Factory Location: Shanghai

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

GMP/SAP Diaphragm valve can assemble according to the different requirement by customer to meet different producing process. Tthe sterile working conditions such as pharmacy, Vintage, Dairy products, Beverage, Cosmetics etc... producing and Hygienic water for semiconductor industry can choose the GMP/SAP Diaphragm Valve. Size：DN6~DN80、1/4"~3.0" Operating Pressure： Manual：0~1.0Mpa Pneumatic：0~0.6Mpa Operating Temperature：-20~+150℃（According to the Diaphragm Material） Environment Temperature：-10~+60℃ Body Material：316L(surface in contact with product） 304（surface not in contact with product） Seal Material: PTFE+EPDM（Standard） Silicon、EPDM、Viton（Optional） Hand Shank Material：ABS Cylinder：304 Surface：Ra<0.4(surface in contact with product） Shot Blasting or Electrolysis（surface not in contact with product） Control Mode：Manual、NO、NC、A/A Connection：Welding、Tri-clamp、Flange、Thread etc..
