Basic Info

Factory Location: Shanghai

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

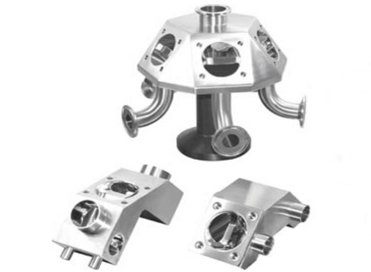

The Multi-port diaphragm valve can produced by customized designing to meet different producing process. The entire valve is machining from forging stainless steel parts.The sterile working conditions such as pharmacy, Vintage, Dairy,products, Beverage, Cosmetics etc producing and Hygienic water for semiconductor industry can choose the Multi connection Diaphragm Valve. Size：DN6~DN80、1/4"~3.0" Operating Pressure：Manual：0~1.0Mpa Pneumatic：0~0.6Mpa Operating Temperature：-20~+150℃（According to the Diaphragm Material） Environment Temperature：-10~+60℃ Body Material：316L(surface in contact with product） 304（surface not in contact with product） Seal Material: PTFE+EPDM（Standard） Silicon、EPDM、 Viton（Optional） Surface：Ra<0.4(surface in contact with product） Shot Blasting or Electrolysis（surface not in contact with product） Control Mode：Manual、NO、NC、A/A Connection：Welding、Tri-clamp、Flange、Thread etc..
