Double Rotary valve

Name: Double Rotary valve
Availability: double-rotary-valve-385842.html

Category:Fluid Equipment > Valves
Product Name:Double Rotary valve
Price(USD):Negotiable
Company:SHANGHAI ANSHA FLUID TECHNOLOGY CO., LTD

Send Inquiry

Favorites

Similar Products

Butterfly Valve

Aseptic diaphragm valve

Double Rotary valve

Double pin clamp 13SFLiner

Double Seat mix-proof Valve

Diaphragm Valves

Custom Made Manual Stainless Steel Handle Threaded Butterfly Ball Valve

Single Seat Valve

T type diaphragm valve

Clamped check valve

Basic Info

Factory Location: Shanghai

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

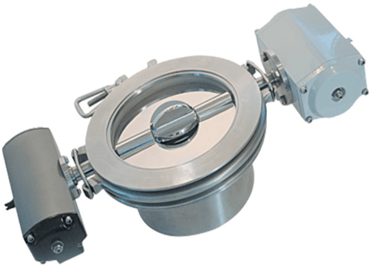

Double rotary valve is one kind of metering valve used for power industry, the main rotor used for coarse metering and the center rotor used for precision metering, the valve should be used within meterial metering system, the clamp connection design to make sure the easy assemble and disassemble for the valve. The valve used for power materials split charging and metering. Specification：6.0"、8.0"、10.0" Working Pressure：-0.1~+0.5Mpa OPeration Temperature：-20~+135℃（According to sealing material） Body Material：304、316L(Touch the media） 304（Not touch the media） Sealing Material：Silicon rubber（Standard） EPDM、Vulcanized rubber（Option） Surface：Ra<0.4(Touch fluid parts） Shot Blasting or Electrolysis（not Touch fluid parts） Connection Standard：ASME-BPE Connection：Welding、Clamp connection、Flange etc... Main Rotor Actuator: 0-90°（butterflr rotor）, 0-180°（star-type rotor） Center Rotor Actuator: 0-180°, pneumatic motor
