Sanitary Ball Valve

Name: Sanitary Ball Valve
Availability: sanitary-ball-valve-385843.html

Category:Fluid Equipment > Valves
Product Name:Sanitary Ball Valve
Price(USD):Negotiable
Company:SHANGHAI ANSHA FLUID TECHNOLOGY CO., LTD

Send Inquiry

Favorites

Similar Products

Double Rotary valve

Clamp sampling valve

Star Flow Control Valve

Sanitary Diaphragm Valve

nasal

Union welding check valve

Can

Single seat tank Valve

BAG-ON-VALVE

Half ball

Basic Info

Factory Location: Shanghai

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

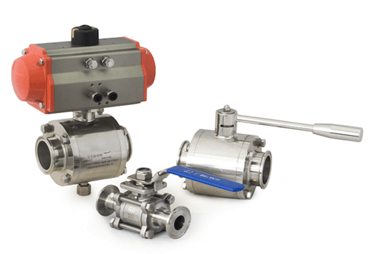

The Sanitary ball valve is one kind of Sanitary valve used for fluid OFF function and other control, the entire vale housing transfixion design will not cause any fluid resistance. It is the best choice for viscosity fluid control. The valve is widely used in the food industry, beverage industry, brewing industry, pharmacy industry and chemical industry. Size：DN10~DN100、0.5"~4.0" Operating Pressure：0~1.6Mpa Operating Temperature：-20~+180℃ Body Material：304/316L(surface in contact with product） 304（surface in contact with product） seat material: PTFE Surface： Ra<0.8(surface in contact with product） Sub-photochromic or polishing（surface not in contact with product） Connection: Welding、Tri-cllamp、Flange、Thread etc... Body Option：With emptying opening,With Cleaning inlet opening and emptying opening, Valve seat entire warp up etc... Control Mode：NO、NC、A/A、Manually Spare Parts：Solenoid valve、position feedback device etc...
