Butterfly Valve

Name: Butterfly Valve
Availability: butterfly-valve-385879.html

Category:Fluid Equipment > Valves
Product Name:Butterfly Valve
Price(USD):Negotiable
Company:SHANGHAI ANSHA FLUID TECHNOLOGY CO., LTD

Send Inquiry

Favorites

Similar Products

Safety Valve

Check Valves

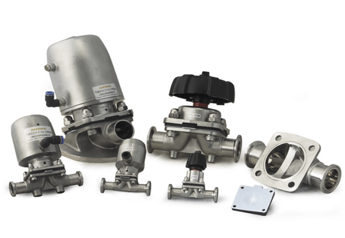

Mini manual diaphragm valve

Bellows valve

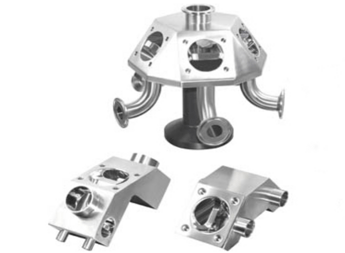

Multi-port Diaphram Valve

Clamp sampling valve

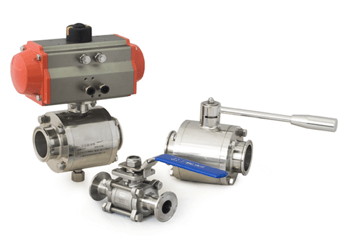

Clamp non-retention ball valve

Throat

Pueumatic non-retention ball valve

BAG-ON-VALVE

Basic Info

Factory Location: Shanghai

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

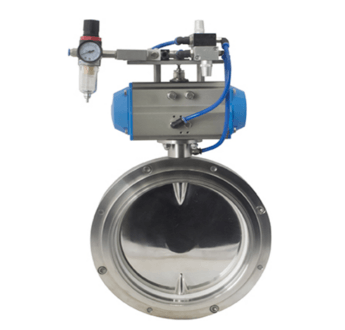

The sanitary Butterfly valve is one kind of center sealing valve, The valve body and valve clack are machining from high class forging stainless Steel. The Silicon Rubber, EPDM and PTFE are used as sealing material. The PTFE material within excellent chemical resistance and lubricity to ensure can be used for widely conditions than common rubber sealing material and lightly operation. The main advantage of the valve is that can prevent the rubber drop off which will damage/the materials, the valve can be used in sterile pharmacy power, powered milk, starch, sugar industry etc... Size: DN25~DN200、1.0“~8.0” Operating Pressure: 0~1.0Mpa Compress Air Pressure: 0.5~0.8Mpa Operating Temperature: -20℃~+135℃（According to seal material） Body Material：304/316L(Touch media parts） 304（Not touch media parts） Seal Material: EPDM（Standard） Silicon、NBR、Viton(Option) Surface: Ra<0.8 (Touch media parts) Ra<1.6(Not touch media parts) Control Mode: Manual, Normal ON, Normal OFF, Double Action Connection Standard: DIN11850 series 2、3A、ISO1127 series 1 Connection: Welding, Tri-clamp, Flange, Thread etc... Spare Parts: Solenoid valve, Proximity switch, Intelligent controlle etc...
